EMoMo HX90C2LUC/HX90C2LUCN Switch 3 Button 2 Plug With USB Port For Lift Chair And Power Recliner

• This is the genuine eMoMo HX90C2LUC/HX90C2LUCN switch, a three-button switch designed specifically for use in power recliners, lift chairs, sectional sofas, and other motion furniture.

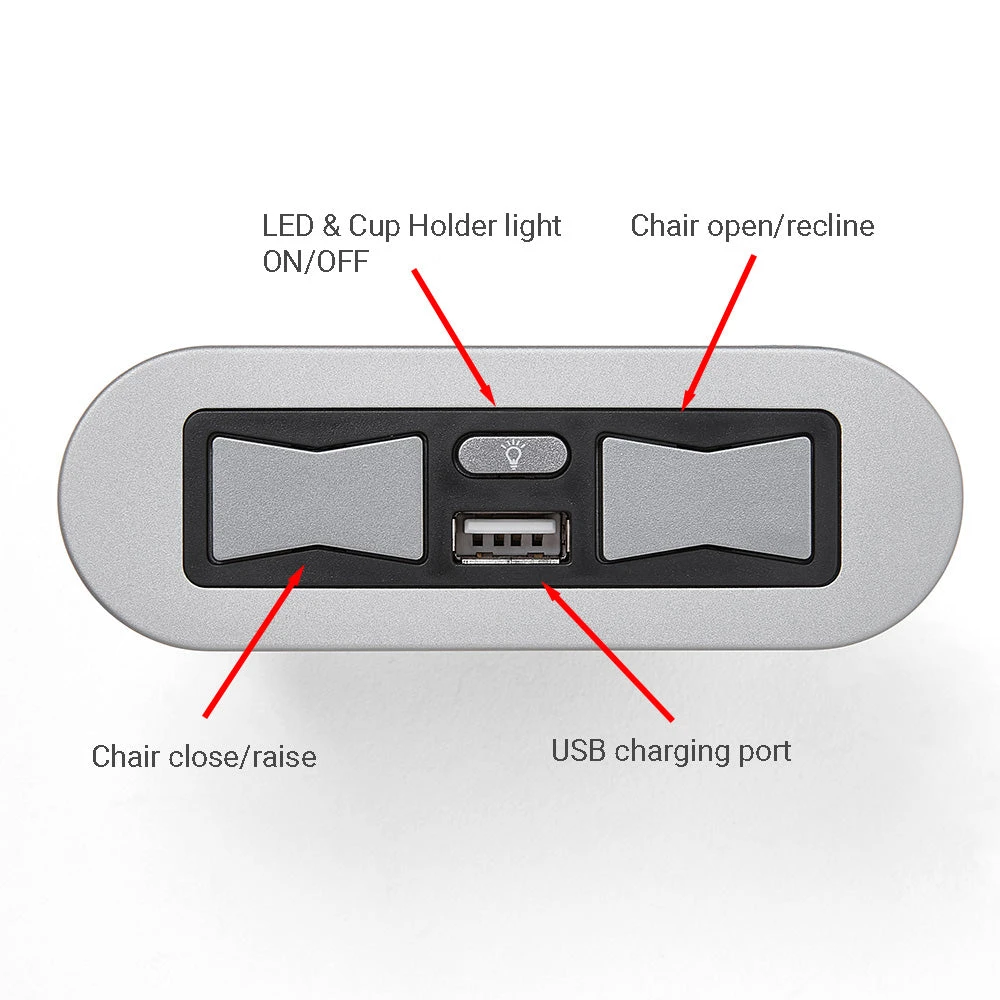

• The HX90C2LUC/HX90C2LUCN switch has three buttons, the two butterfly-shaped buttons control the Open/Close (Recline/Raise) of the chair. The small button in the middle controls the LED light and cup holder light.
• This switch comes with a built-in USB charging port that outputs at 5V 2A, allowing you to charge your mobile devices while you relax in your chair.

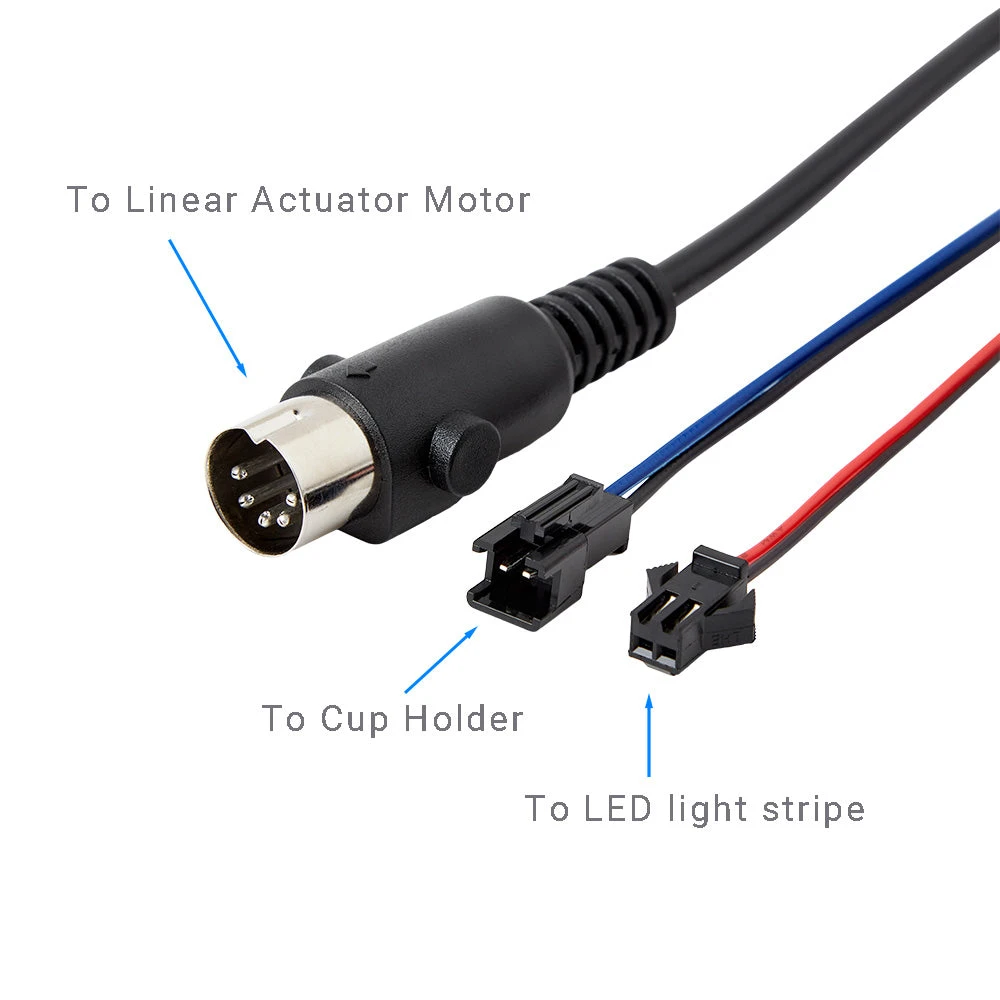

• The switch has two cables and plugs. The five-pin round plug connects to the linear actuator motor, the 2-pin plug connects to the cup holder and LED light stripe.

Please note

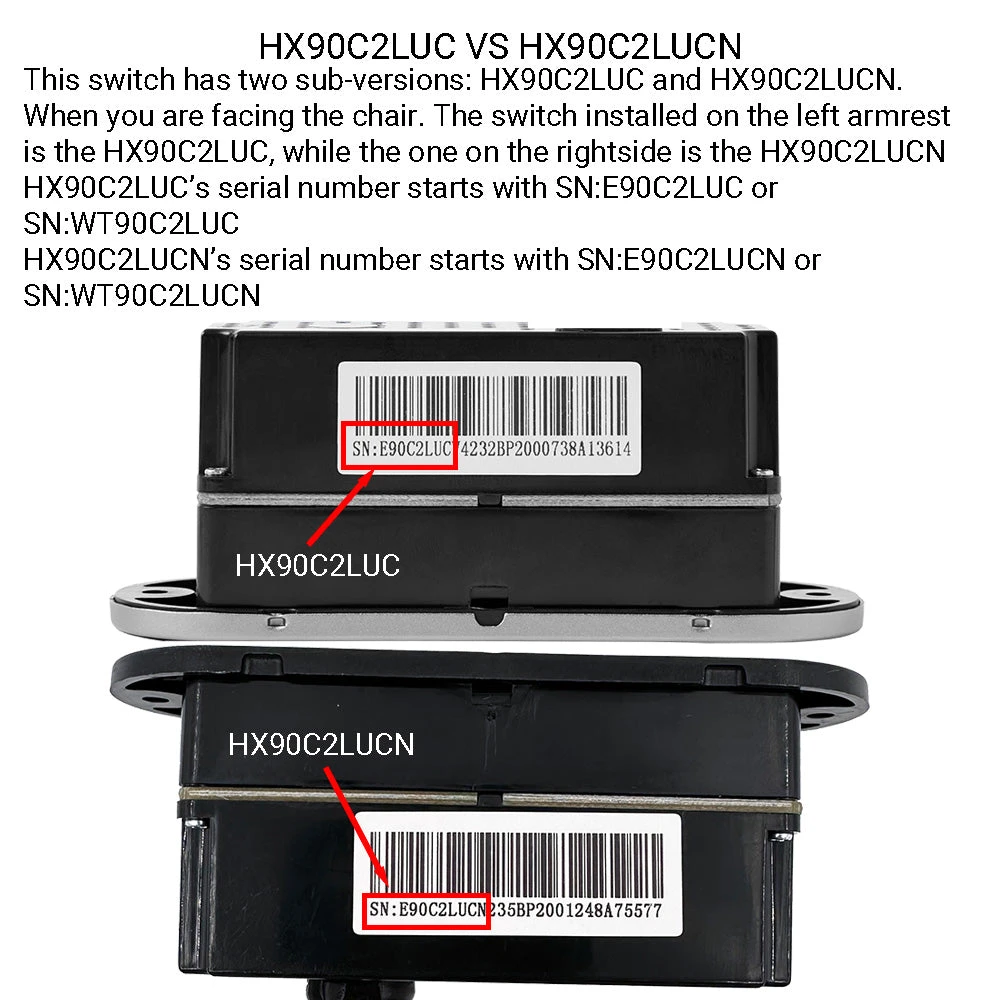

• This switch has two sub-versions: HX90C2LUC and HX90C2LUCN.
• When you are facing the front of the chair. The switch installed on the left armrest of the chair is the HX90C2LUC, while the one installed on the right armrest of the chair is the HX90C2LUCN.
• It is important to buy the correct sub-model, as using the wrong one may result in the switch not functioning properly.
• To determine if this switch will work as a replacement for your current switch, it is necessary to check the serial number. This switch can replace switches whose serial number begins with SN: E90C2LUC, SN: E90C2LUCN, SN: WT90C2LUC, or SN: WT90C2LUCN.
•  We can provide other sub-models as well, if you need a different one, please send us a picture of your switch’s serial number sticker, we will recommend the correct one for you.

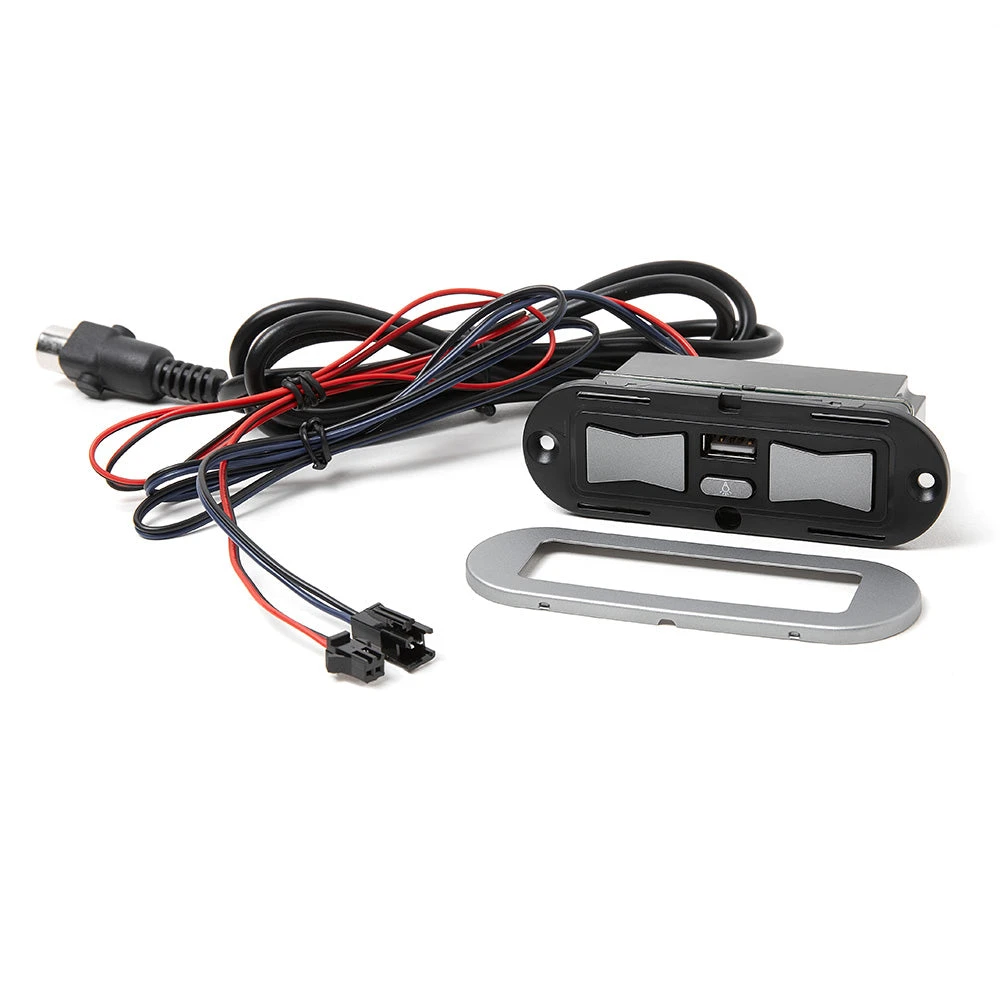

Package includes:

• 1* HX90C2LUC/HX90C2LUCN switch,
• 1* Aluminum switch cover
• 2* Mounting screws
