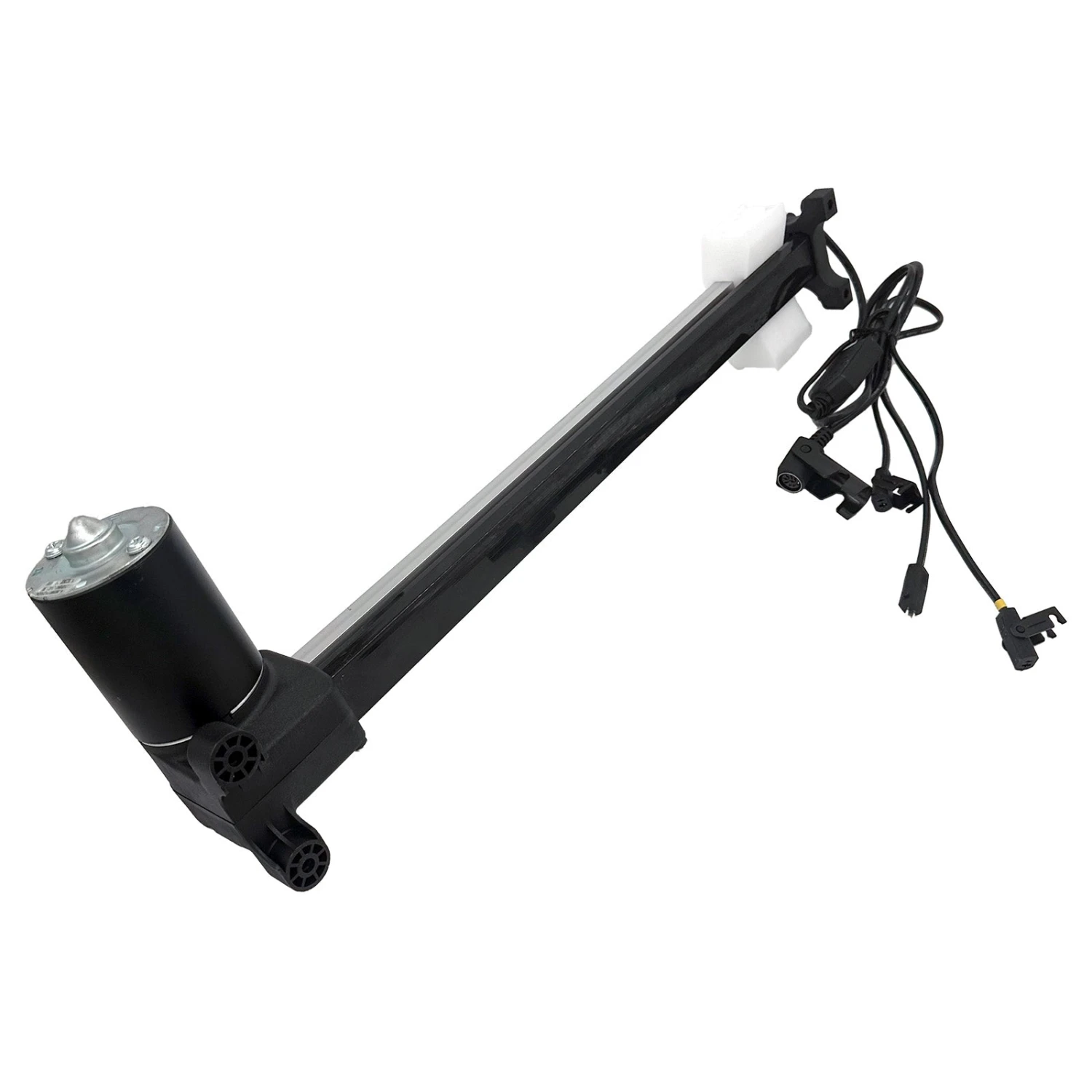

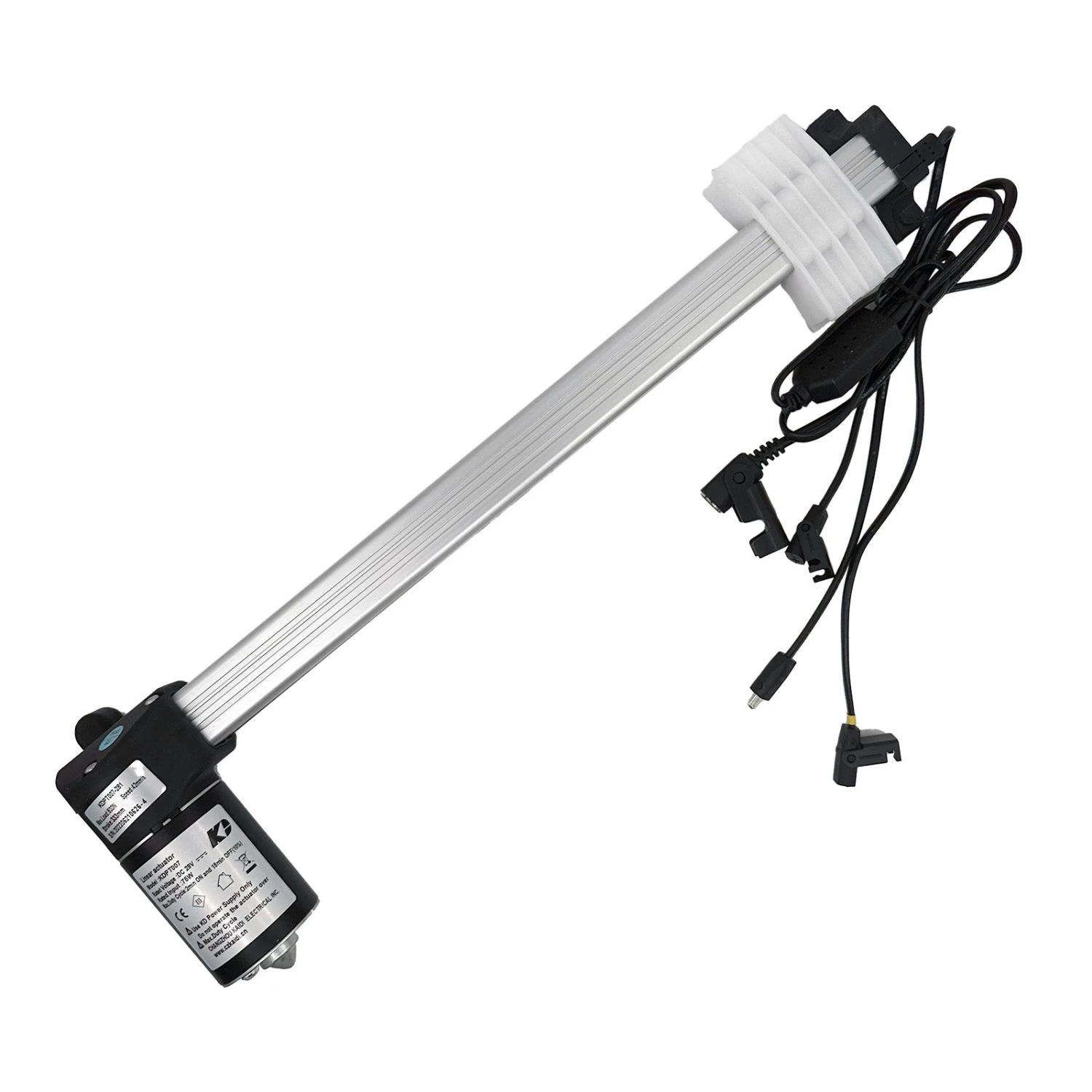

Kaidi KDPT007-281 Linear Actuator

• This is the genuine Kaidi KDPT007-281 linear actuator assembly.
• This actuator is used for motion furniture, such as power recliners, lift chairs, couches, and loveseats. It drives the open/close (up/down) motion.
• The stroke for this linear actuator is 333mm.

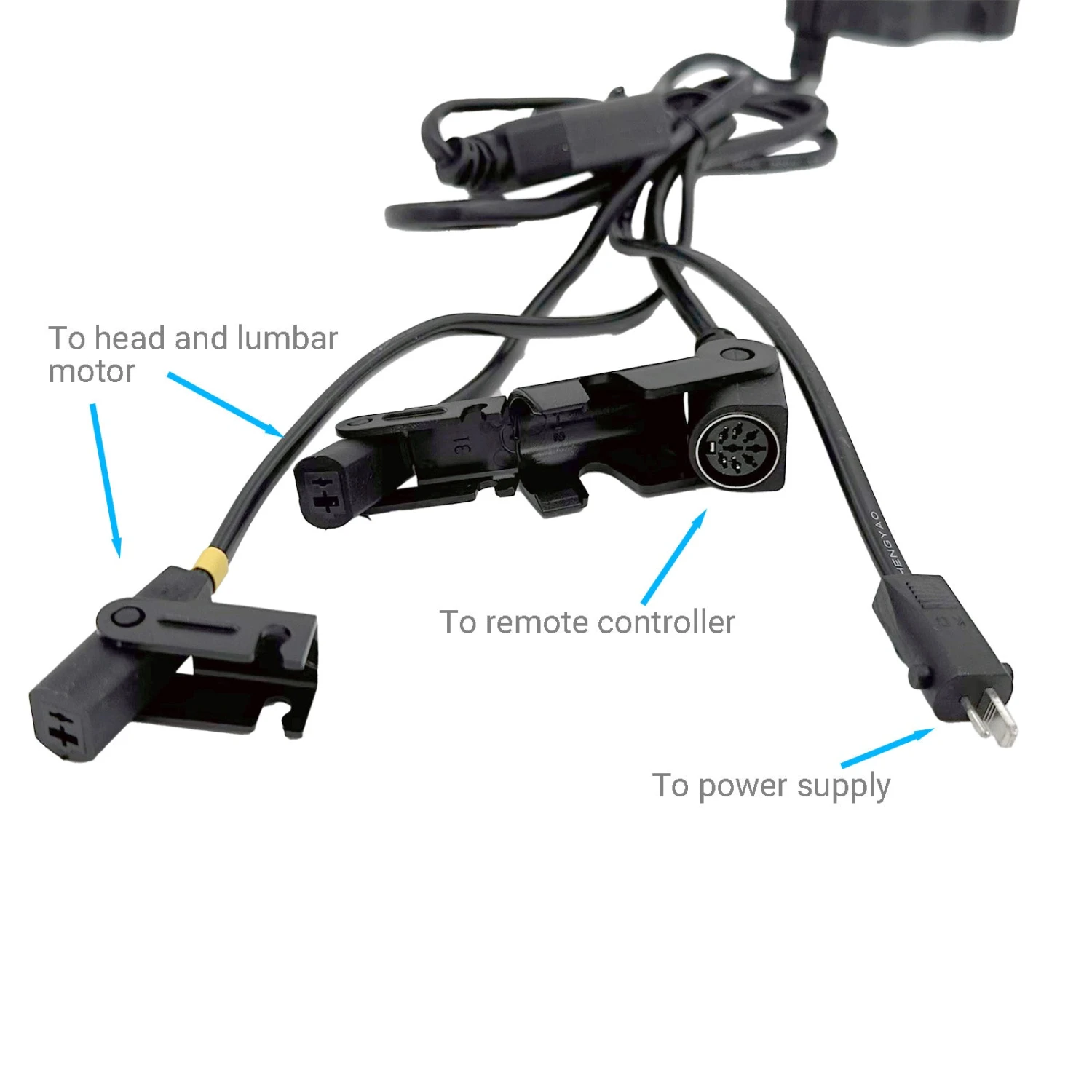

•  The KDPT007-281 linear actuator has 4 leads, a 2-pin male plug connects to the power supply, two 2 pin female plugs connect to the head and lumbar motor, and an 8-pin plug connects to the remote controller.

Specifications:

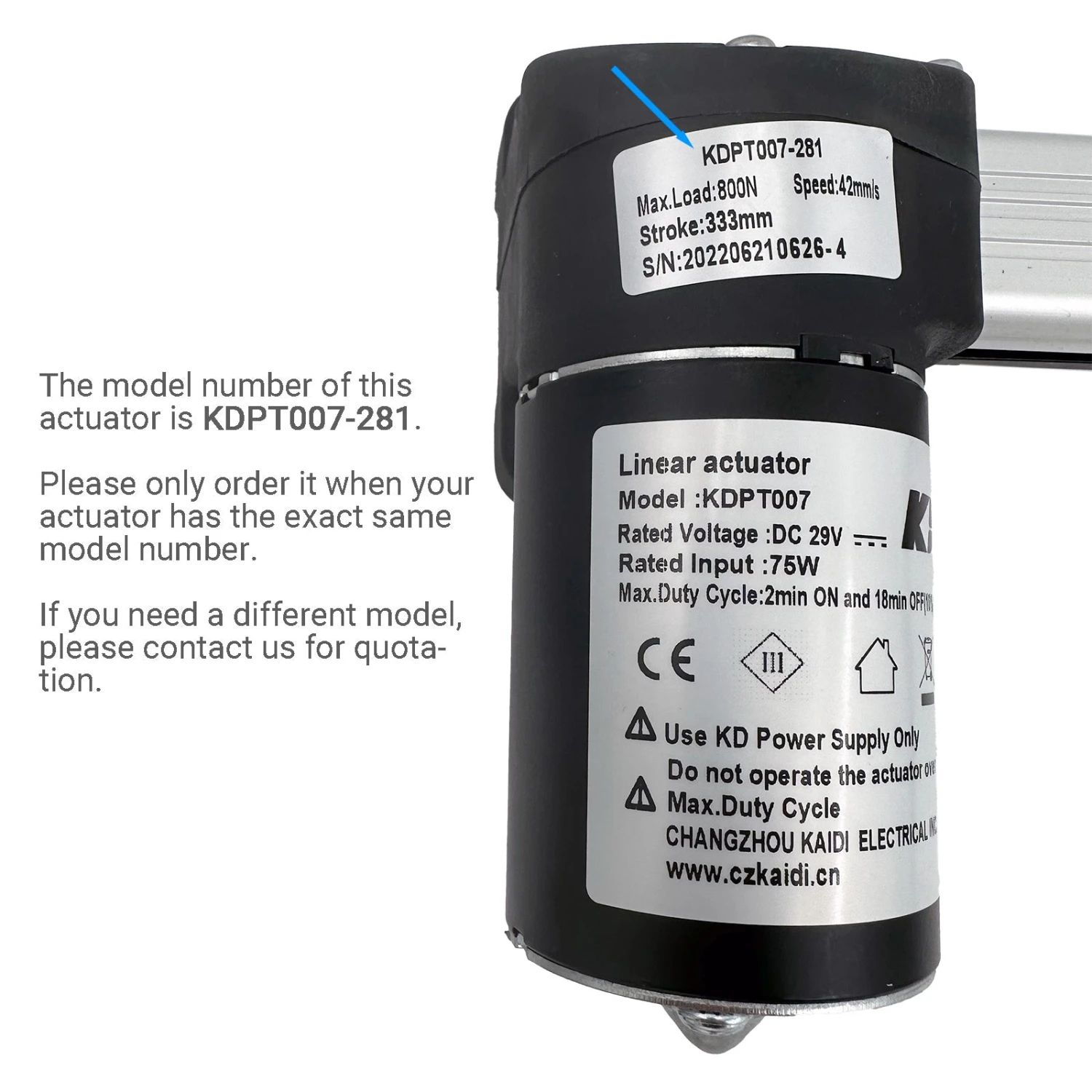

• Model: KDPT007-281
• Maximum load: 800N
• Speed: 42mm/s
• Stroke: 333mm
• Rated voltage: DC 29V
• Rated power: 75W
• Maximum duty cycle: 2 minutes ON and 18 minutes OFF

Please note:

• This actuator is not compatible with all motion furniture. Please make sure that your linear actuator has the exact same model number (KDPT007-281) before ordering.
• This item is not returnable or refundable. Please avoid test buying.
• We recommend troubleshooting the power adapter, remote controller, switch, junction box, and cables before purchasing this actuator.
• The lead time for delivery is 2-20 days, depending on stock availability.
• If you need a different model, please contact us for a quote.
