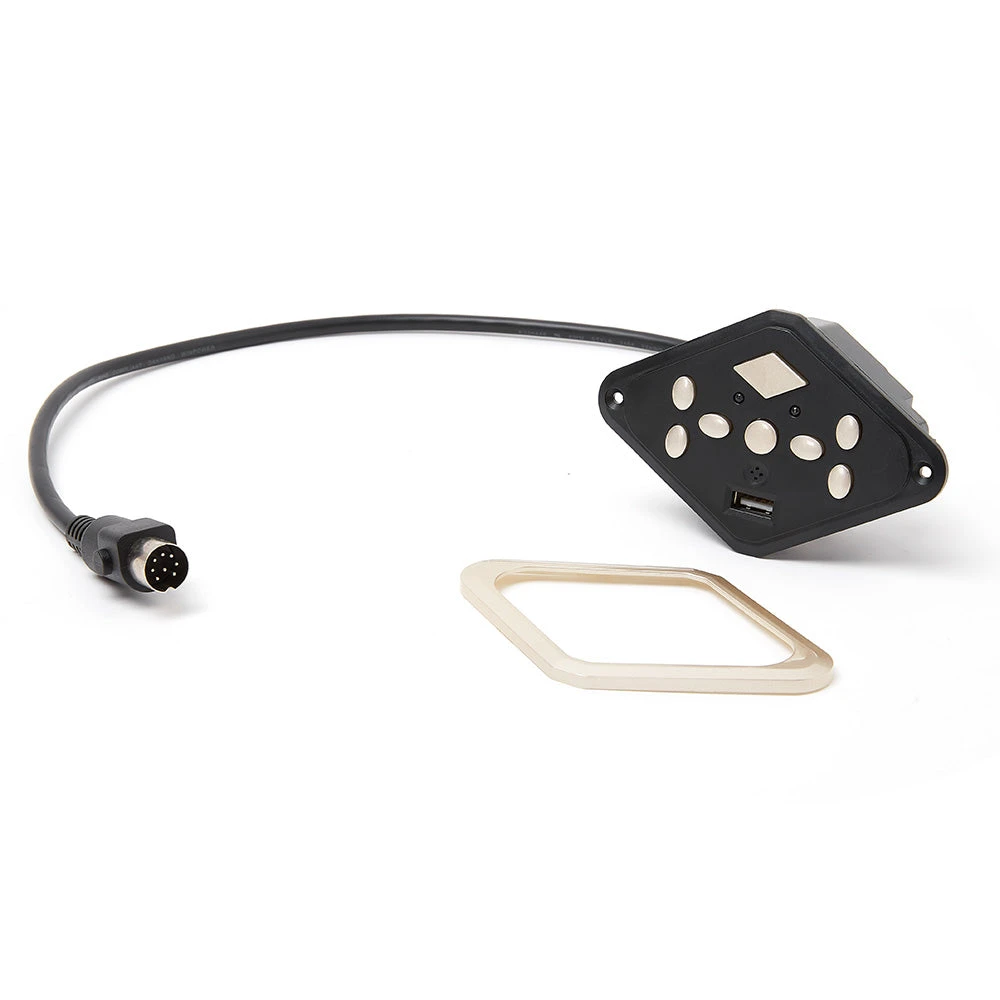

MLSK93-A1 8-Button Switch For Power Recliner Chairs W/ USB

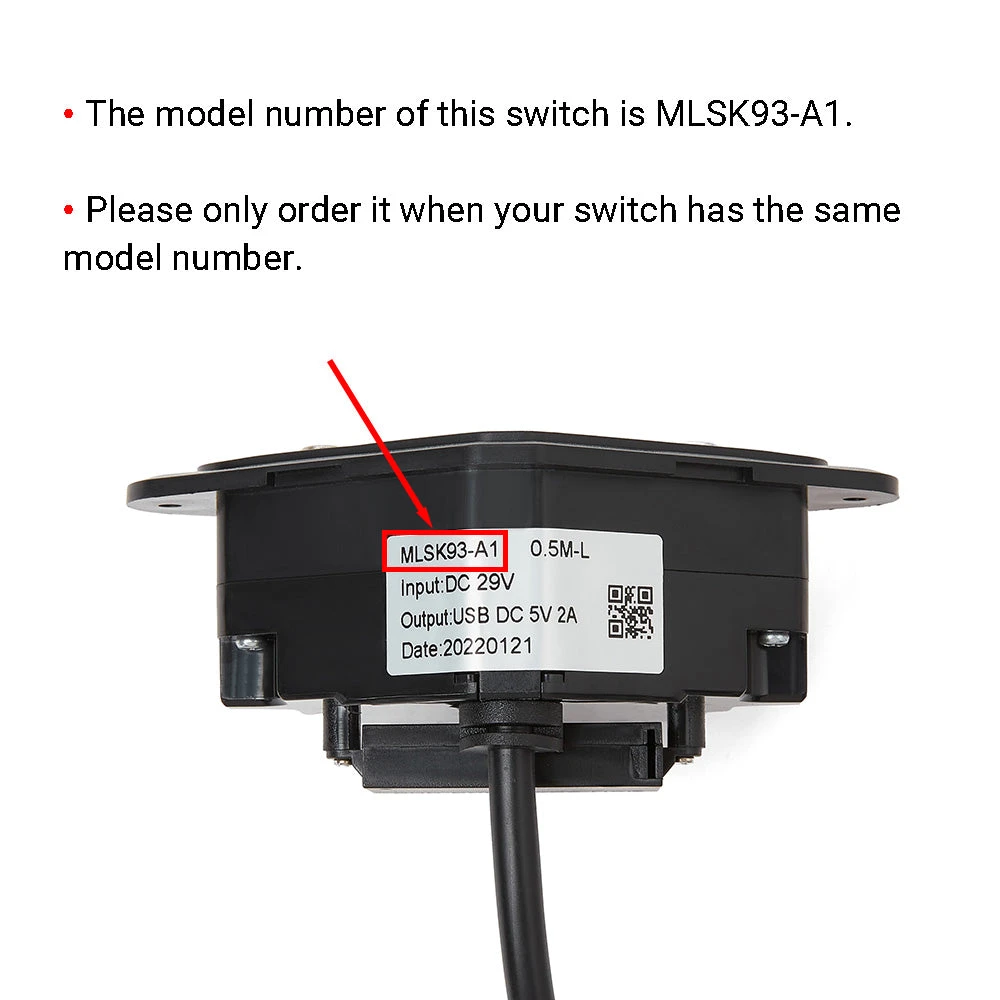

This is the genuine MLSK93-A1 switch. If your switch has the same model number, then you can use this switch to replace yours.

• This switch is suitable for power recliner/lift chairs.

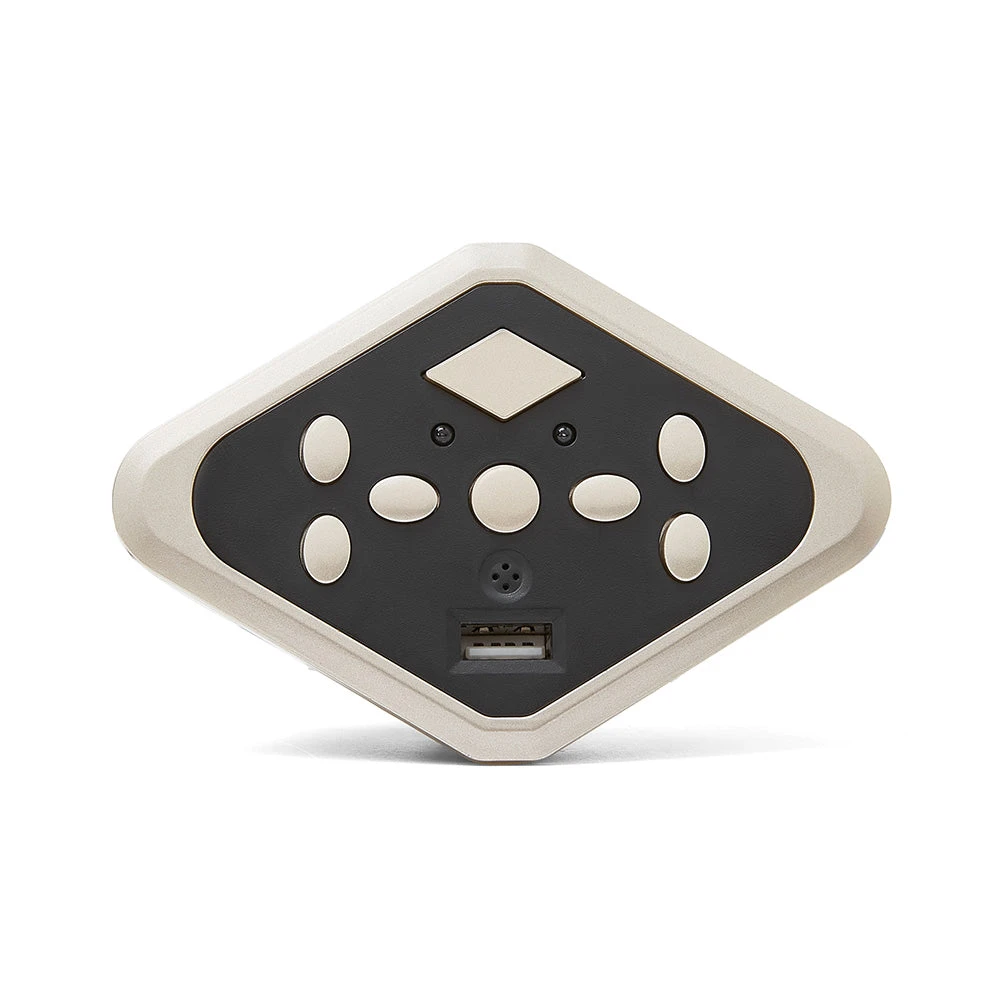

• The switch has 8 buttons, operates 3 linear actuator (up/down) motors.
• With a USB charging port, you can use it to charge your mobile device. The output is 5V 2A.
• With reset button, go back to the upright position with one click.
• With voice control, allows you to operate the chair without touching any buttons.

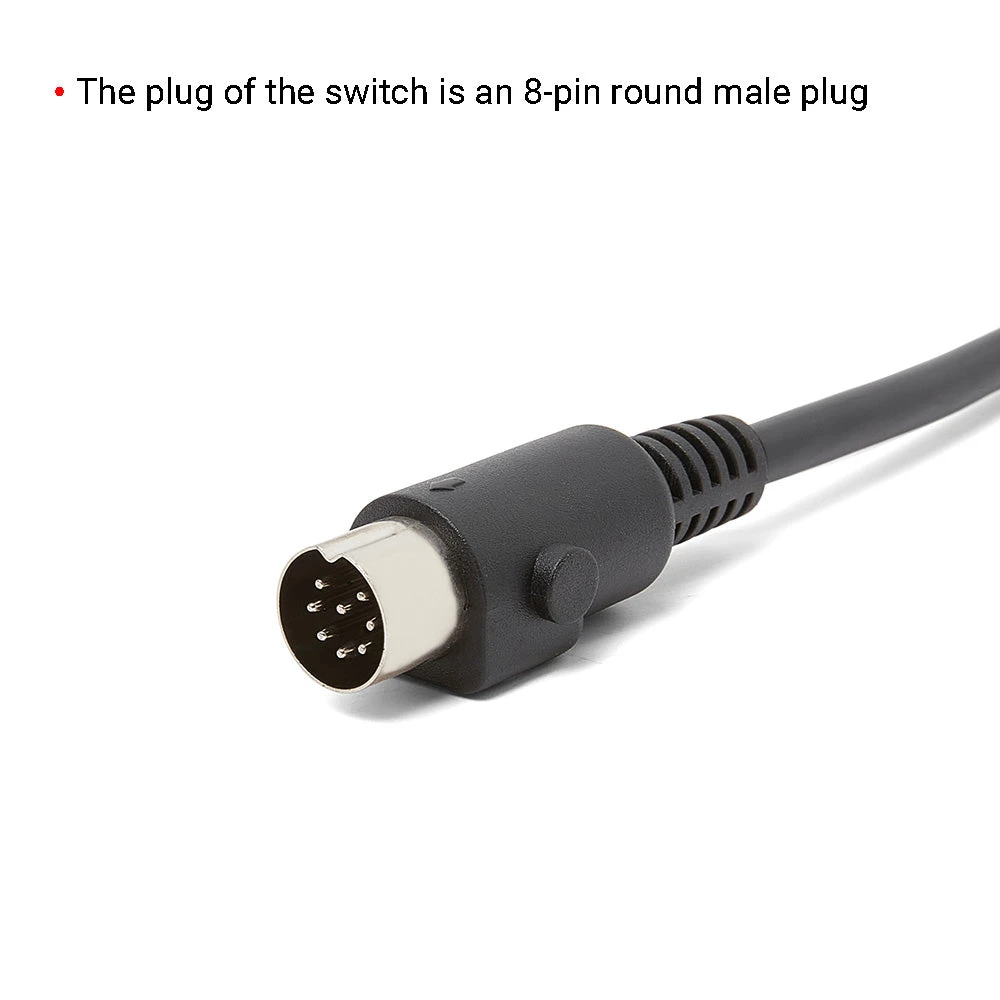

• The switch’s plug is an 8-pin round male plug

Warning:
The MLSK93-A1 switch is NOT a universal switch, please DO NOT buy it if your switch’s model number is not the same.

Note:

• The plastic cover of the switch is difficult to remove once it is locked. To facilitate your installation, the cover will be separated from the switch when shipping.
• When you are installing the switch, do not install the plastic cover until everything is done.
• After installing this switch in your chair, please operate all the actuator motors to the longest and shortest position a couple of times, so that the switch can identify the stroke of the motor.
• Avoid quick operation of the buttons: When responding to the switching operation, the current is large, quick operation is more likely to cause damage to the switch.
