OKIN JLDK.15.07.09 Switch For Recliner Lift Chair 7 Buttons 7 Pin With USB

This is the genuine JLDK.15.07.09 Recliner Switch, if your switch has the same model number, you can use this switch to replace yours.

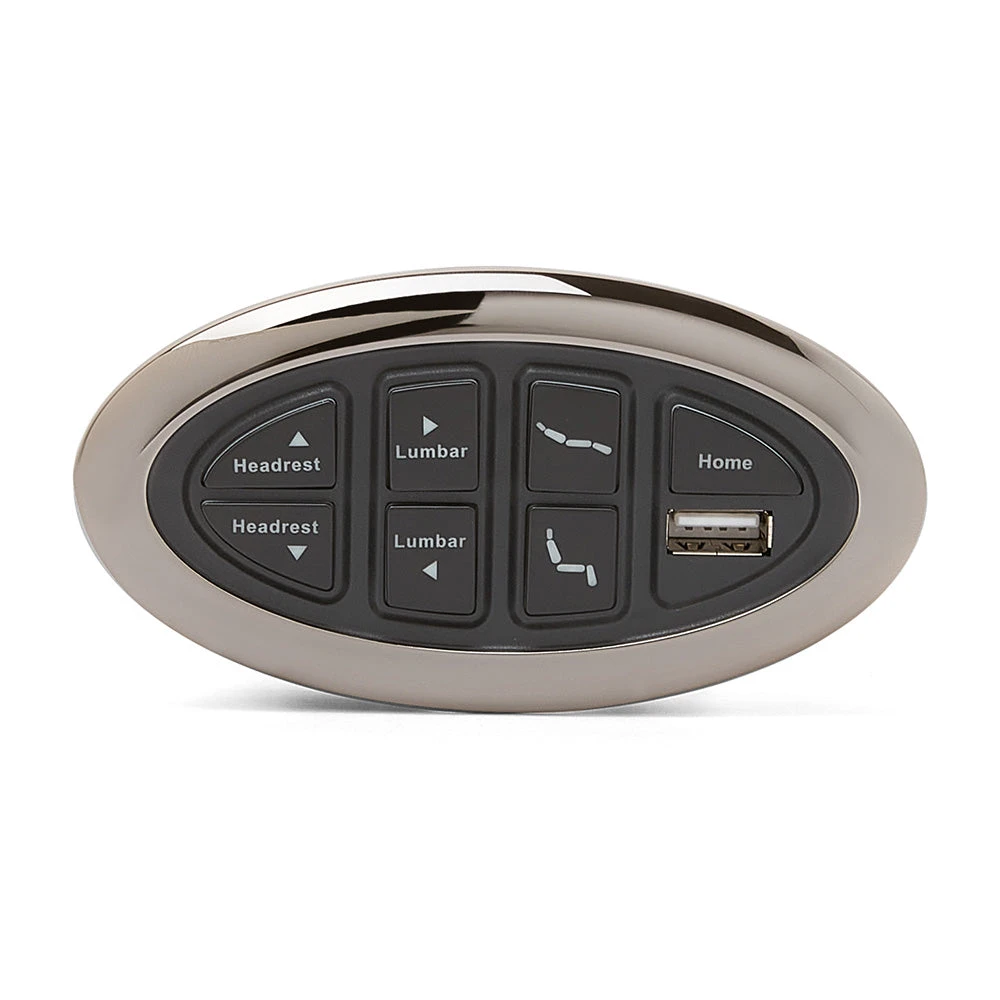

• The switch has 7 buttons, it operates the headrest back/forth, lumbar back/forth, chair raise/recline.
• With a home button, reset the chair in a click
• The switch has a USB charging port, the output is 5V 1A, you can use it to charge your mobile device.

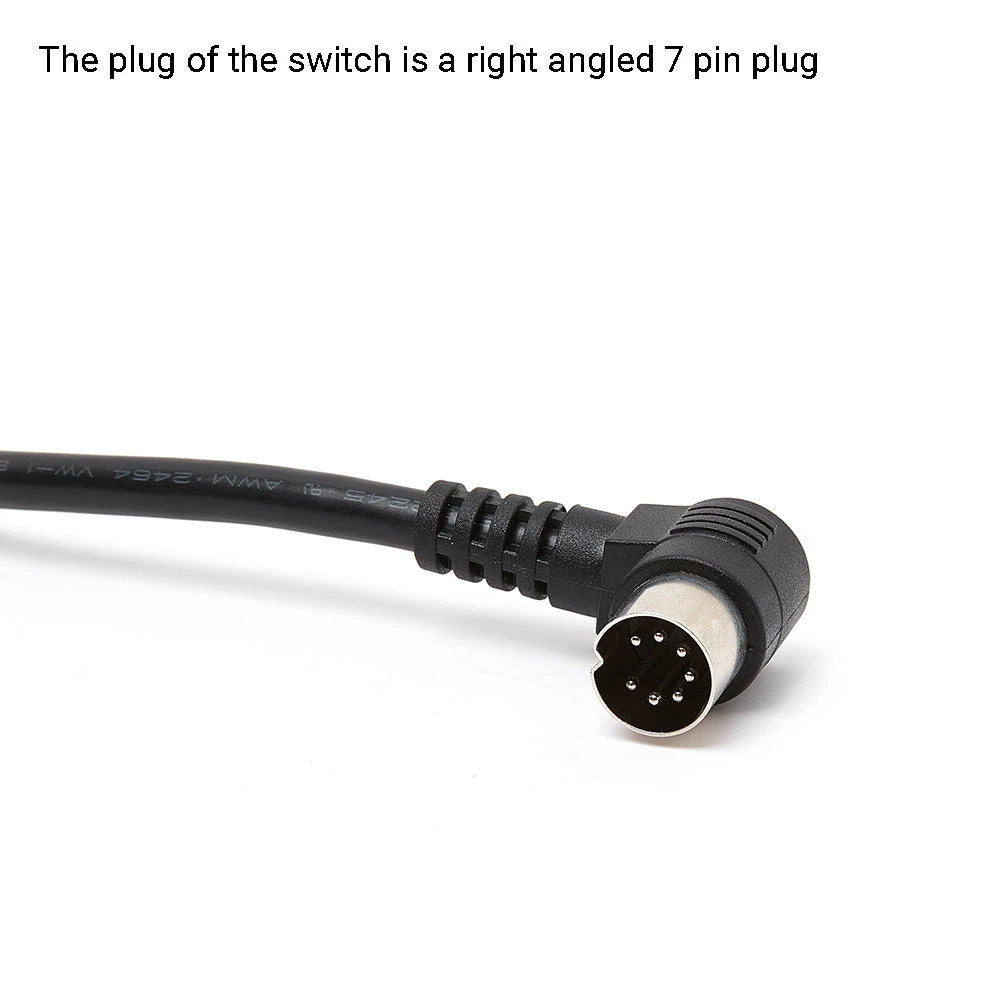

• The switch has a right angled 7 pin round plug.

Specifications

• Part Number: JLDK-15

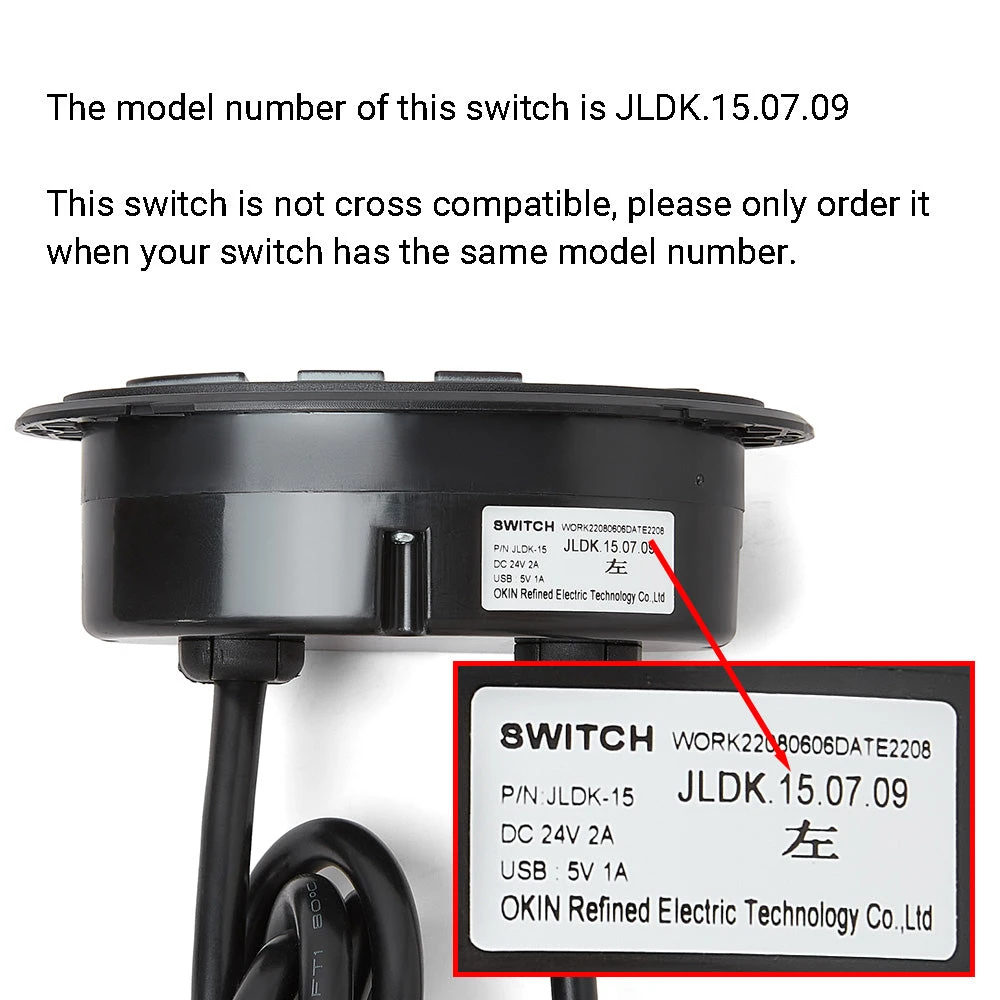

• Model number: JLDK.15.07.09
• Rated Voltage: 24V 2A
• USB: 5V 1A
• OKIN Refined Electric Technology Co., Ltd.

Note:

• The JLDK.15.07.09 is not a universal switch, please only order when your switch has the same model number.

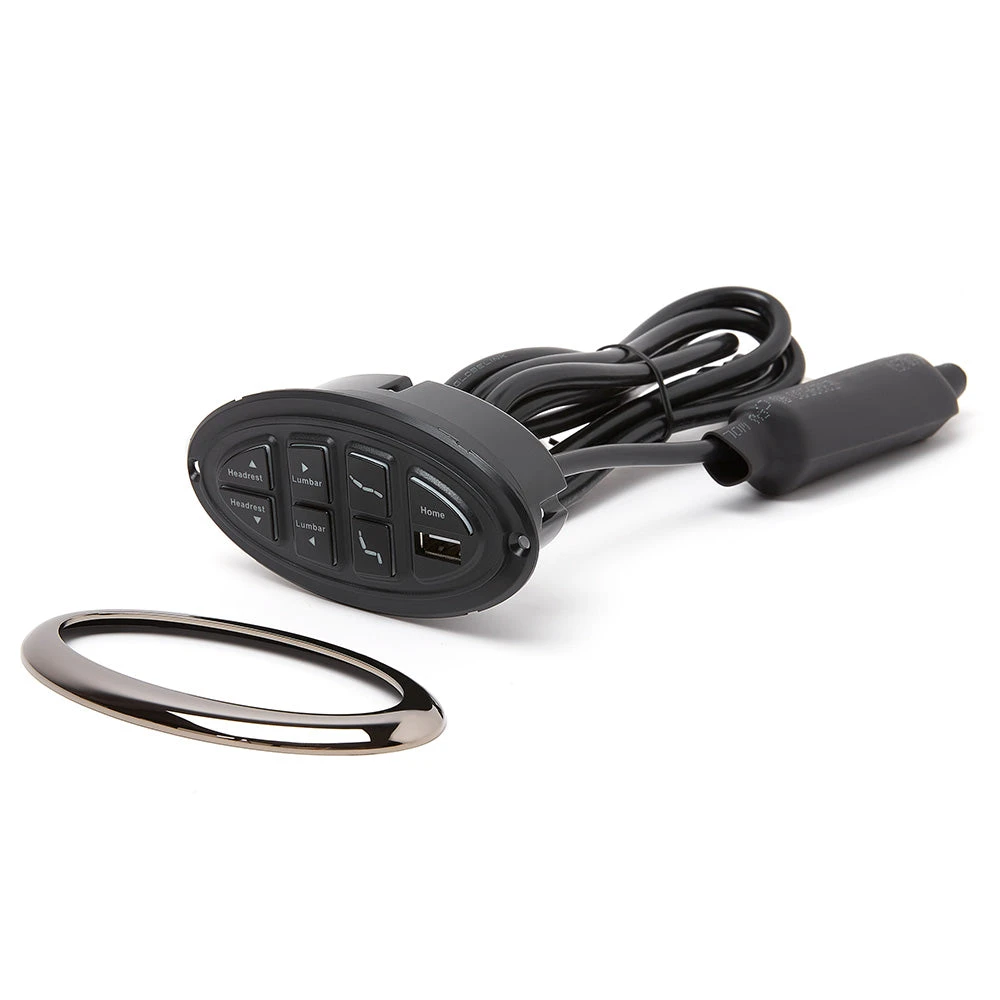

• The plastic cover of the switch is difficult to remove once it is locked. To facilitate your installation, the cover will be separated from the switch when shipping.
• When you are installing the switch, do not install the plastic cover until everything is done.
• After installing this switch to your chair, please operate all the actuator motors to the longest and shortest position a couple of times, so that the switch can identify the stroke of the motor.
• Avoid quick operation of the buttons: When responding to the switching operation, the current is large, and quick operation is more likely to cause damage to the switch.
