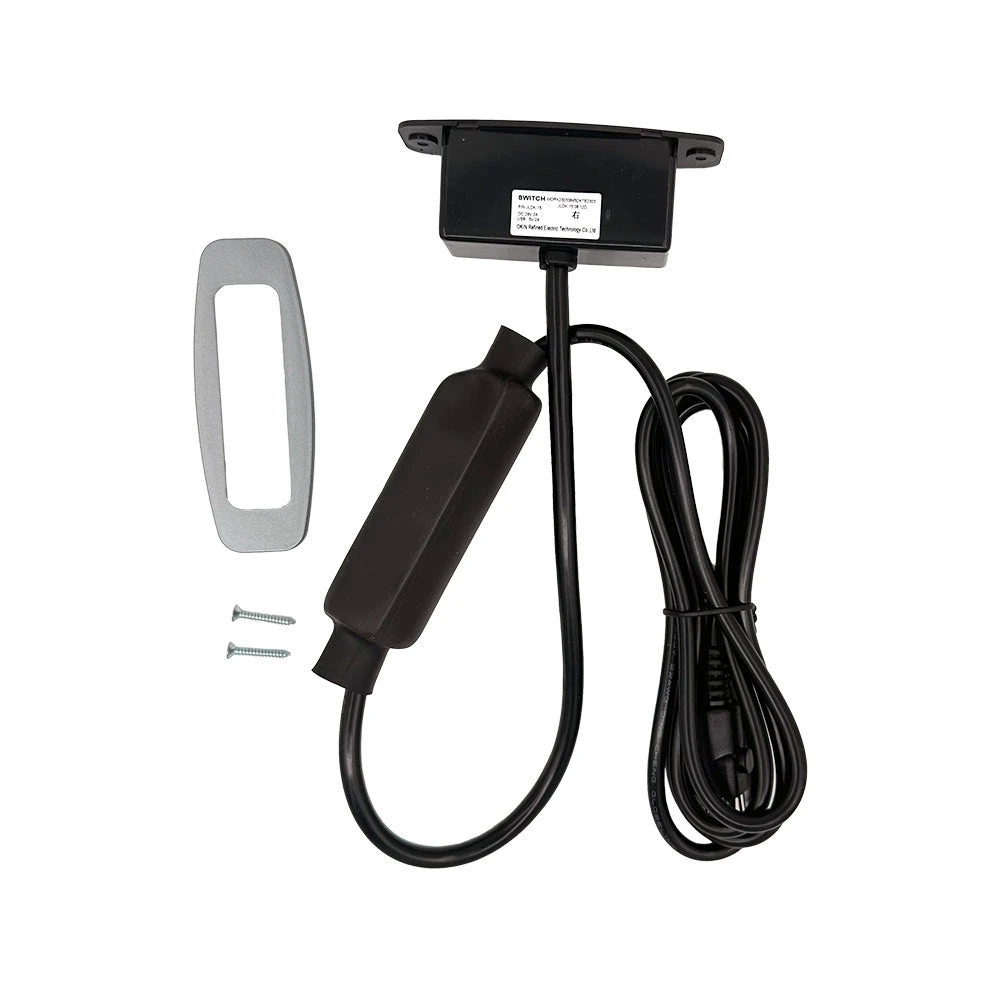

OKIN JLDK.15.08.12D Switch For Recliner Lift Chair 5 Buttons 5 Pin With USB

• This is the genuine JLDK.15.08.12D Recliner Switch, if the switch you are about to replace has the same model number, this switch will be a perfect replacement.

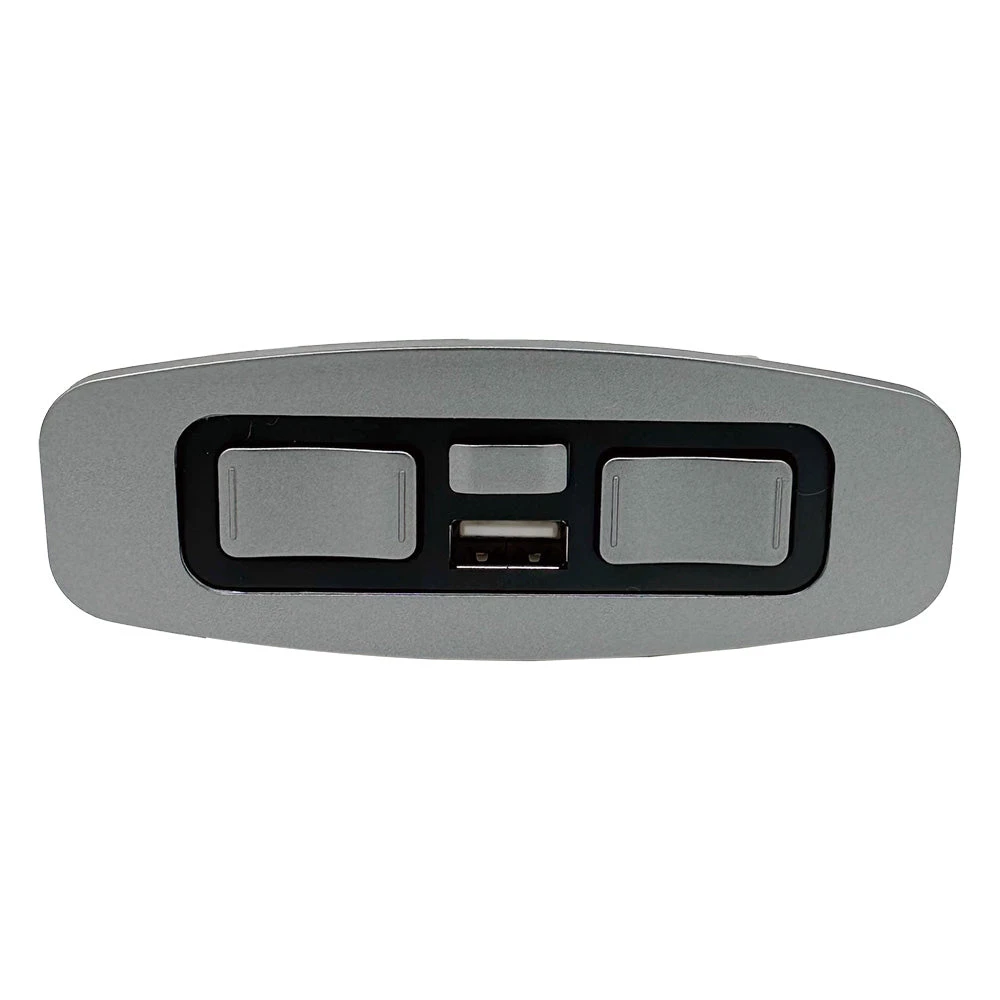

• The switch has 5 buttons, it is suitable for recliners or lift chairs which have 2 linear actuator motors.
• With a reset button, go back to the up-right position in a click.
• The switch has a USB charging port, the output is 5V 2A, you can use it to charge your mobile device.

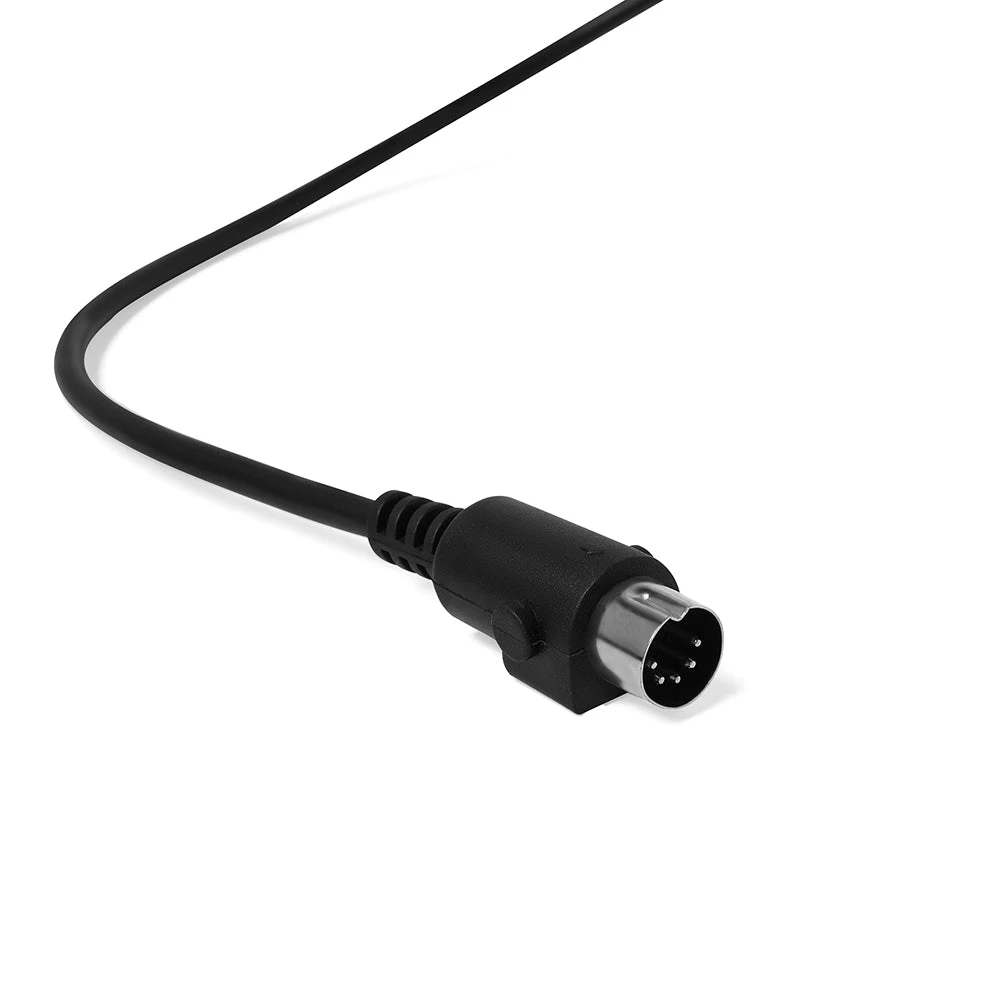

• The switch uses a round 5 pin plug.

Specifications

• Part Number: JLDK-15

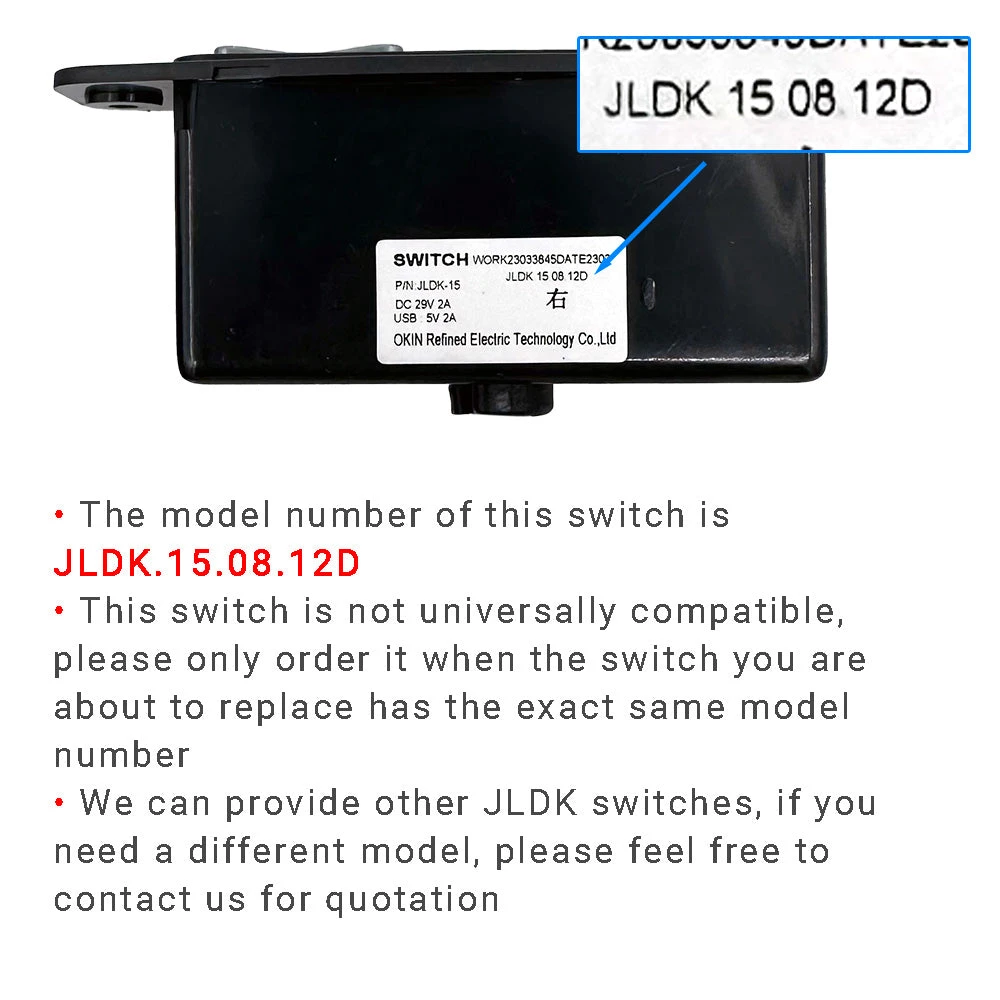

• Model number: JLDK.15.08.12D
• Rated Voltage: 29V 2A
• USB: 5V 2A
• Cable length: 150cm (59inche)

Note:

• The JLDK.15.08.12D is not a universally compatible switch, please only order when your switch has the same model number.
• After installing this switch to your chair, please operate all the actuator motors to the longest and shortest position a couple of times, so that the switch can identify the stroke of the motor.
• Avoid quick operation of the buttons: When responding to the switching operation, the current is relatively large, and quick operation is more likely to cause damage to the switch.
